2021

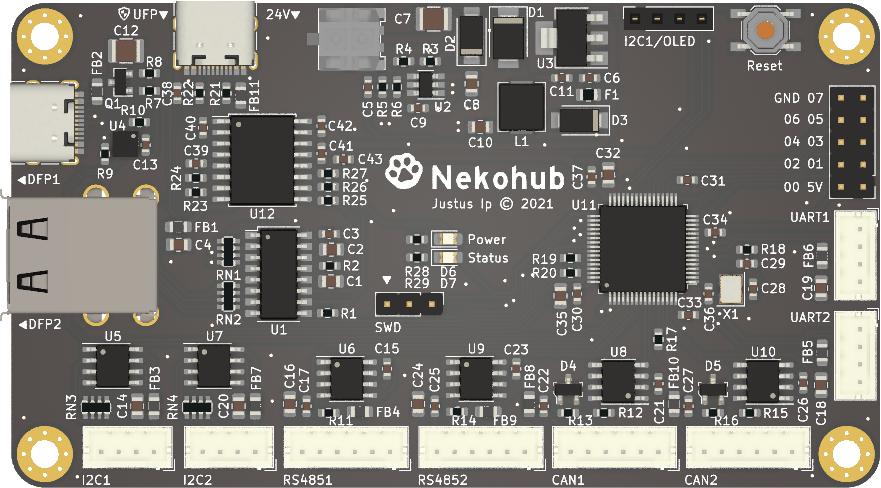

Multi-Interface Communication Hub
A board with a wide range of applications that allows you to communicate and interact with low and high voltage (3.3V-24V) devices safely, through USB-C, USB-A, I²C, RS485, CANBUS and UART. It also has 8 GPIO pins and 5V power output. The upstreaming-facing USB-C port is isolated to protect the connected controller from high voltage spike.
Specifications
Processor:
STMicroelectronics® STM32F405RG 168MHz Arm® 32-bit Cortex®-M4 CPU with DSP and FPU, 1 Mbytes of Flash Memory, 192+4 Kbytes of SRAM including 64-Kbyte of CCM (Core Coupled Memory) Data RAM, ART Accelerator
Interfaces:
1 x Molex Micro-Fit 2-Pin Connector for 24V power input
1 x USB-C isolated upstream-facing port
1 x USB-C downstream-facing port
2 x USB-A downstream-facing ports, stacked vertically
2 x I²C ports
2 x RS485 ports
2 x CANBUS ports
2 x UART ports
8 x GPIO pins
1 x 5V output pin
1 x OLED-128O064D OLED display I²C adapter (shared with a I²C port)
1 x Reset button for STM32 processor
Features:
Texas Instruments™ TUSB320 USB Type-C™ Configuration Channel Logic and Port Control
Analog Devices ADuM3160 Isolated USB Transceiver
E-Link Technology HS8836A USB Hub Controller
Texas Instruments™ P82B715 I²C Bus Extender
Maxim Integrated™ MAX485E RS-485/RS-422 Transceiver
Microchip® MCP2551 High-speed CAN Transceiver
Texas Instruments™ TPS54202 Synchronous Step Down Converter for stepping down 24V to 5V
Other Views

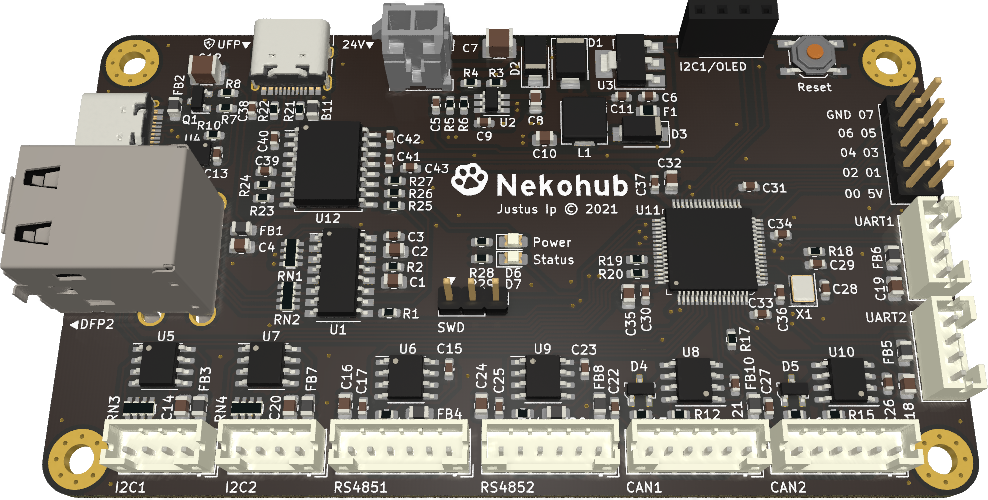

Top view (with components)

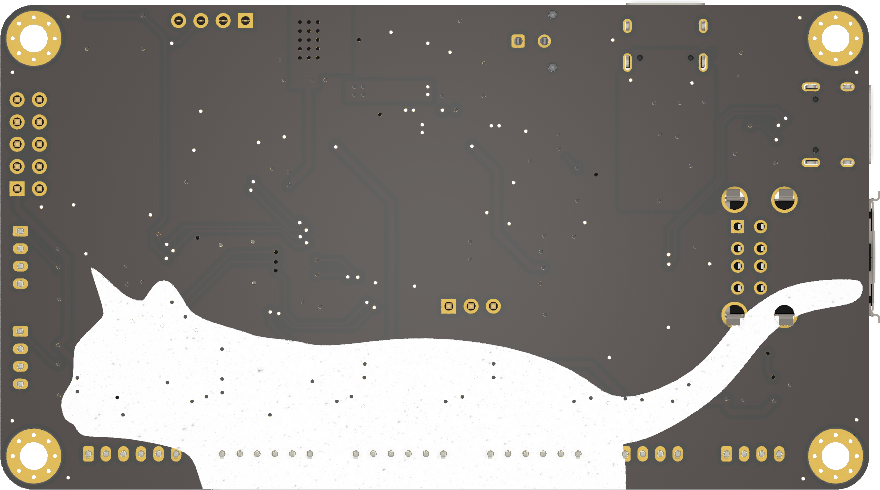

Bottom view (with components)

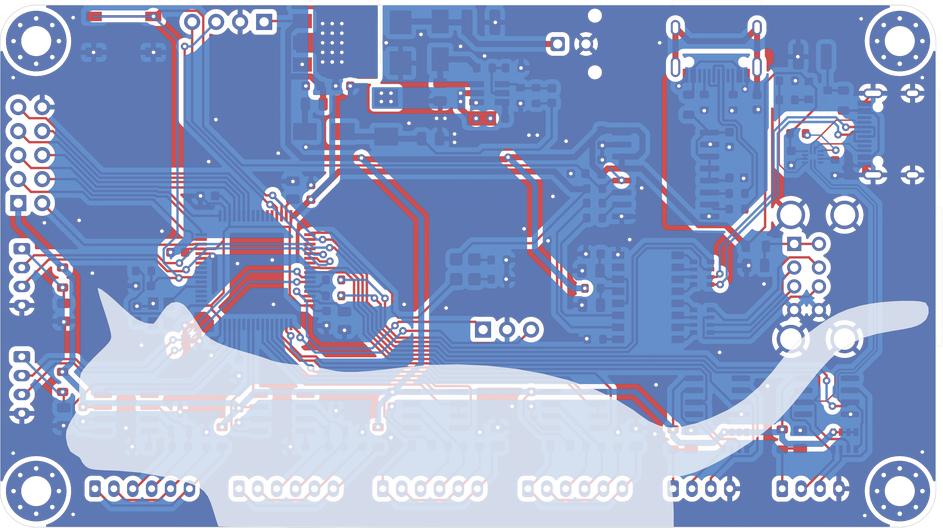

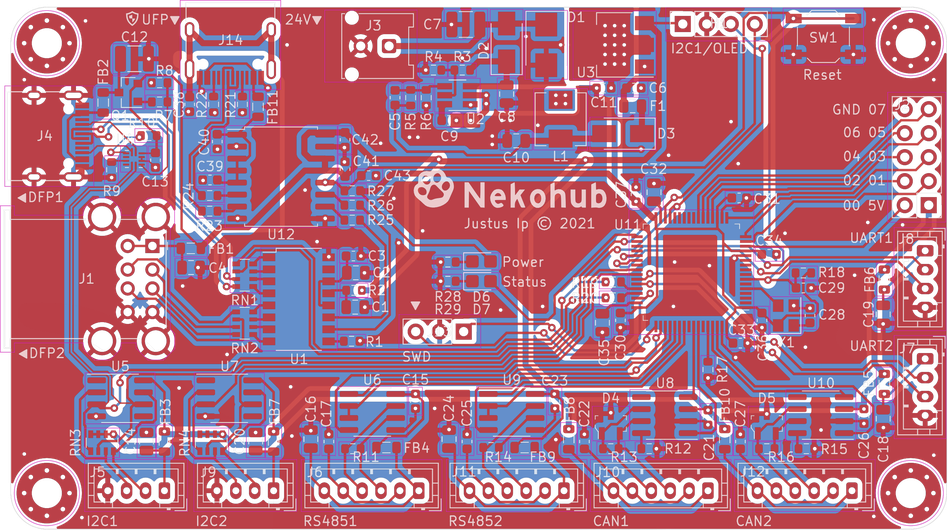

Top view (X-ray, without components)
Bottom view (X-ray, without components)
2021

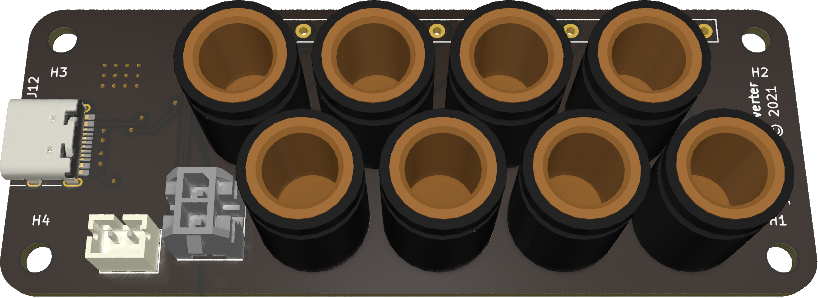

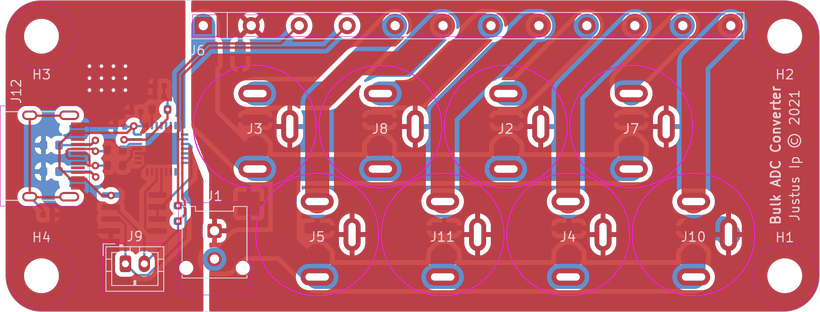

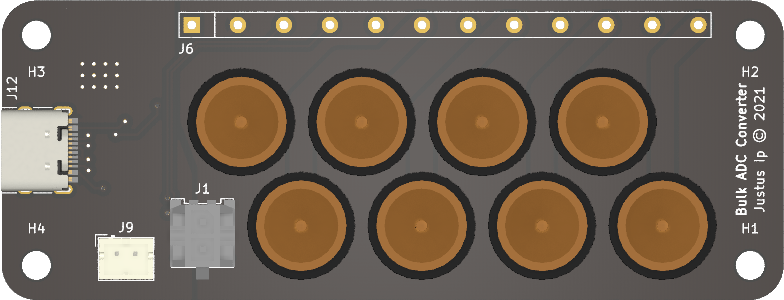

8-Channel ADC Shield
An extension board for a RS485 8-channel high-frequency ADC. It can transmit converted ADC data through USB-C with sample rate of over 1MS/s. It uses 6.35mm TRS Jack for analog signal input (because headphone cables are good insulating cables).
Specifications
Interfaces:
1 x Molex Micro-Fit 2-Pin Connector for 24V power input
1 x USB-C upstream-facing port
8 x 6.35mm TRS Jack Connector for analog input
1 x JST PH 2-Pin Connector for RS485 direct read
Features:
UMW® SP3485E RS-485/RS-422 transceiver
Silicon Labs® USBXpress™ CP2102N USB to UART bridge controller
Other Views
Top view (with components)

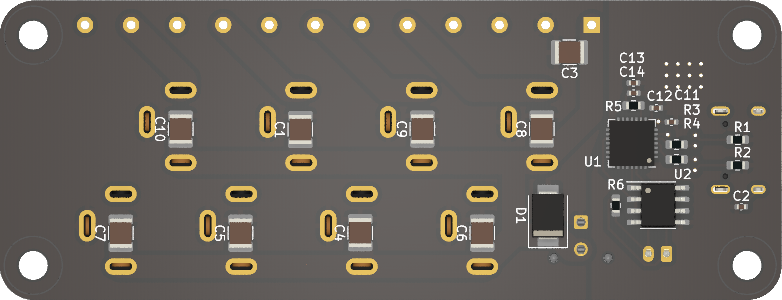

Bottom view (with components)

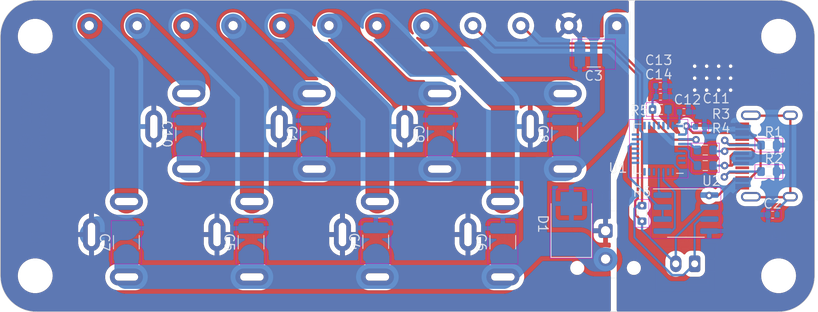

Top view (X-ray, without components)
Bottom view (X-ray, without components)
2020

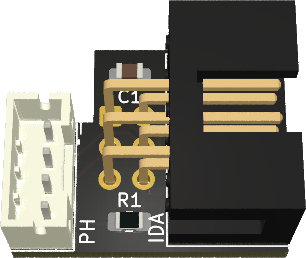

PH to IDC CANBUS Adapter Board
An adaptor that bridges a CANBUS signal from a JST PH 4-Pin connector to an IDC 02x03 connector.
Specifications
Interfaces:
1 x JST PH 4-Pin Connector
1 x IDC 02x03 Connector
Other Views
Top view (with components)
Bottom view (with components)
Top view (X-ray, without components)
Bottom view (X-ray, without components)
